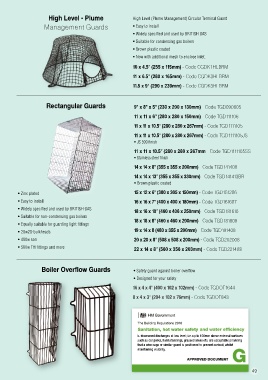

Page 51 - TFC 2022 Catalogue

High Level - Plume High Level (Plume Management) Circular Terminal Guard

Management Guards • Easy to install
• Widely specified and used by BRITISH GAS
• Suitable for condensing gas boilers
• Brown plastic coated
• Now with additional mesh to enclose inlet.

10 x 4.5" (255 x 115mm) - Code CGDK1HLBRM
11 x 6.5" (280 x 165mm) - Code CGDK3HLBRM

11.5 x 9" (290 x 230mm) - Code CGDK3HLBRM

Rectangular Guards 9" x 8" x 5" (230 x 200 x 130mm) - Code TGD090805

11 x 11 x 6" (280 x 280 x 150mm) - Code TGD111106
11 x 11 x 10.5" (280 x 280 x 267mm) - Code TGD1111105

11 x 11 x 10.5" (280 x 280 x 267mm) - Code TGD1111105JS
• JS 500 finish
11 x 11 x 10.5" (280 x 280 x 267mm - Code TGD1111105SS
• Stainless steel finish

14 x 14 x 8" (355 x 355 x 200mm) - Code TGD141408
14 x 14 x 13" (355 x 355 x 330mm) - Code TGD141413BR
• Brown plastic coated

• Zinc plated 15 x 12 x 6" (380 x 305 x 150mm) - Code TGD151206
• Easy to install 16 x 16 x 7" (400 x 400 x 180mm) - Code TGD161607
• Widely specified and used by BRITISH GAS
18 x 16 x 10" (460 x 406 x 250mm) - Code TGD181610
• Suitable for non-condensing gas boilers
18 x 18 x 8" (460 x 460 x 200mm) - Code TGD181808
• Equally suitable for guarding light fittings
• 28w2D bulkheads 19 x 14 x 8 (480 x 355 x 200mm) - Code TGD191408
• 400w son 20 x 20 x 8" (508 x 508 x 200mm) - Code TGD202008
• 500w TH fittings and more
22 x 14 x 8" (560 x 356 x 203mm) - Code TGD221408

Boiler Overflow Guards • Safety guard against boiler overflow
• Designed for your safety

16 x 4 x 4" (400 x 102 x 102mm) - Code TGDOF1644

8 x 4 x 3" (204 x 102 x 76mm) - Code TGDOF843

b. downward discharges at low level; i.e. up to 100mm above external surfaces
such as car parks, hard standings, grassed areas etc. are acceptable providing
that a wire cage or similar guard is positioned to prevent contact, whilst
maintaining visibility.

49
