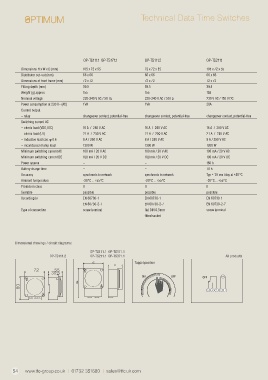

PTIMUM Technical Data Time Switches

OP-TS111.1 OP-TS171.1 OP-TS111.2 OP-TS211.1

Dimensions H x W x D (mm) 105 x 72 x 55 72 x 72 x 55 105 x 72 x 55
Distributor cut-out (mm) 66 x 66 66 x 66 66 x 66
Dimensions of front frame (mm) 72 x 72 72 x 72 72 x 72
Fitting depth (mm) 39.5 39.5 39.5
Weight (g) approx. 155 155 155
Nominal voltage 220-240 V AC / 50 Hz 220-240 V AC / 50 Hz 230 V AC / 130 V DC
Power consumption at 230 V~ (AC) 1VA 1VA 2VA
Current output
– relay changeover contact, potential-free changeover contact, potential-free changeover contact, potential-free
Switching current AC
– ohmic load (VDE, IEC) 16 A / 250 V AC 16 A / 250 V AC 16 A / 250 V AC
– ohmic load (UL) 21 A / 250 V AC 21 A / 250 V AC 21 A / 250 V AC
– inductive load cos. φ 0.6 8 A / 250 V AC 8 A / 250 V AC 8 A / 250 V AC
– incandescent lamp load 1300 W 1300 W 1300 W
Minimum switching current AC 100 mA / 20 V AC 100 mA / 20 V AC 100 mA / 20 V AC
Minimum switching current DC 100 mA / 20 V DC 100 mA / 20 V DC 100 mA / 20 V DC
Power reserve – – 150 h
Battery charge time – – 70 h
Accuracy synchronic to network synchronic to network Typ ± 1.5 sec /day at +20°C
Ambient temperature -20°C ... +55°C -20°C ... +55°C -20°C ... +55°C
Protection class II II II
Sealable possible possible possible
According to EN 60730-1 EN 60730-1 EN 60730-1
EN 60730-2-7 EN 60730-2-7 EN 60730-2-7
Type of connection screw terminal flat DIN 6.3mm screw terminal
fitted socket

Dimensional drawings / circuit diagrams:
OP-TS111.1 OP-TS171.1
OP-TS111.2 OP-TS211.1 OP-TS371.1 All products
72 Tappet position
55
72 55
39,5
ON OFF OFF M ~
105
80
5 4 3 2 1
