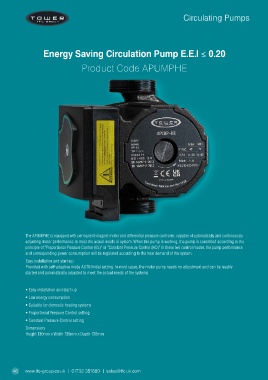

Page 48 - TFC 2022 Catalogue
P. 48
Circulating Pumps
Energy Saving Circulation Pump E.E.I ≤ 0.20
Product Code APUMPHE
The APUMPHE is equipped with permanent-magnet motor and differential pressure controller, capable of automatcally and continuously
adjusting motor performance to meet the actual needs of system. When the pump is working, the pump is controlled according to the
principle of “Proportional Pressure Control (BL)” or “Constant Pressure Control (HD)” In these two control modes, the pump performance
and corresponding power consumption will be regulated according to the heat demand of the system.
Easy installation and start-up
Provided with self-adaptive mode AUTO Initial setting. In most cases, the motor pump needs no adjustment and can be readily
started and automatically adjusted to meet the actual needs of the systems.
• Easy installation and start-up
• Low energy consumption
• Suitable for domestic heating systems
• Proportional Pressure Control setting
• Constant Pressure Control setting
Dimensions
Height 130mm x Width 130mm x Depth 130mm
