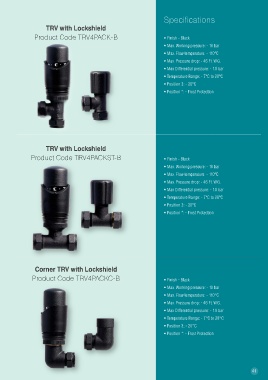

Page 43 - TFC 2022 Catalogue

Specifications

TRV with Lockshield
Product Code TRV4PACK-B • Finish - Black

• Max. Working pressure: - 10 bar
• Max. Flow temperature: - 110ºC
• Max. Pressure drop: - 46 Ft. W.G.
• Max Differential pressure: - 1.0 bar
• Temperature Range: - 7ºC to 28ºC

• Position 3: - 20ºC
• Position *: - Frost Protection

TRV with Lockshield

Product Code TRV4PACKST-B • Finish - Black

• Max. Working pressure: - 10 bar
• Max. Flow temperature: - 110ºC
• Max. Pressure drop: - 46 Ft. W.G.
• Max Differential pressure: - 1.0 bar
• Temperature Range: - 7ºC to 28ºC
• Position 3: - 20ºC
• Position *: - Frost Protection

Corner TRV with Lockshield
Product Code TRV4PACKC-B • Finish - Black

• Max. Working pressure: - 10 bar
• Max. Flow temperature: - 110°C
• Max. Pressure drop: - 46 Ft. W.G.
• Max Differential pressure: - 1.0 bar

• Temperature Range: - 7°C to 28°C
• Position 3: - 20°C
• Position *: - Frost Protection
