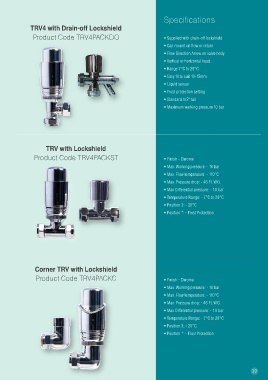

Page 41 - TFC 2022 Catalogue

Specifications

TRV4 with Drain-off Lockshield
Product Code TRV4PACKDO • Supplied with drain-off lockshield

• Can mount on flow or return
• Flow Direction Arrow on valve body
• Vertical or horizontal head
• Range 7°C to 28°C
• Easy fit to suit 10-15mm

• Liquid sensor
• Frost protection setting
• Standard 1/2” tail
• Maximum working pressure 10 bar

TRV with Lockshield

Product Code TRV4PACKST • Finish - Chrome

• Max. Working pressure: - 10 bar
• Max. Flow temperature: - 110°C
• Max. Pressure drop: - 46 Ft. W.G.
• Max Differential pressure: - 1.0 bar
• Temperature Range: - 7°C to 28°C
• Position 3: - 20°C
• Position *: - Frost Protection

Corner TRV with Lockshield
Product Code TRV4PACKC • Finish - Chrome

• Max. Working pressure: - 10 bar
• Max. Flow temperature: - 110°C
• Max. Pressure drop: - 46 Ft. W.G.
• Max Differential pressure: - 1.0 bar

• Temperature Range: - 7°C to 28°C
• Position 3: - 20°C
• Position *: - Frost Protection
