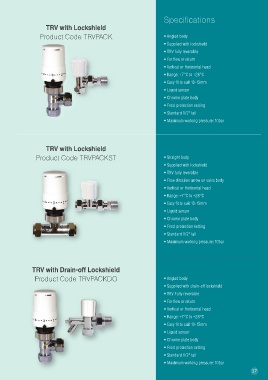

P. 39
Specifications
TRV with Lockshield
Product Code TRVPACK • Angled body
• Supplied with lockshield
• TRV fully reversible
• For flow or return
• Vertical or Horizontal head
• Range: +7°C to +28°C
• Easy fit to suit 10-15mm
• Liquid sensor
• Chrome plate body
• Frost protection setting
• Standard 1/2" tail
• Maximum working pressure: 10bar
TRV with Lockshield
Product Code TRVPACKST • Straight body
• Supplied with lockshield
• TRV fully reversible
• Flow direction arrow on valve body
• Vertical or Horizontal head
• Range: +7°C to +28°C
• Easy fit to suit 10-15mm
• Liquid sensor
• Chrome plate body
• Frost protection setting
• Standard 1/2" tail
• Maximum working pressure: 10bar
TRV with Drain-off Lockshield
Product Code TRVPACKDO • Angled body
• Supplied with drain-off lockshield
• TRV Fully reversible
• For flow or return
• Vertical or Horizontal head
• Range: +7°C to +28°C
• Easy fit to suit 10-15mm
• Liquid sensor
• Chrome plate body
• Frost protection setting
• Standard 1/2" tail
• Maximum working pressure: 10bar
