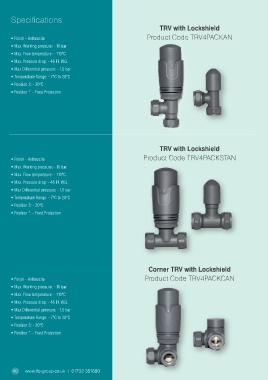

Page 42 - TFC 2022 Catalogue
P. 42

Specifications

                                                                        TRV with Lockshield

      • Finish - Anthracite                                       Product Code TRV4PACKAN
      • Max. Working pressure: - 10 bar
      • Max. Flow temperature: - 110ºC
      • Max. Pressure drop: - 46 Ft. W.G.
      • Max Differential pressure: - 1.0 bar

      • Temperature Range: - 7ºC to 28ºC
      • Position 3: - 20ºC
      • Position *: - Frost Protection













                                                                        TRV with Lockshield


      • Finish - Anthracite                                      Product Code TRV4PACKSTAN
      • Max. Working pressure: - 10 bar
      • Max. Flow temperature: - 110ºC
      • Max. Pressure drop: - 46 Ft. W.G.
      • Max Differential pressure: - 1.0 bar
      • Temperature Range: - 7ºC to 28ºC
      • Position 3: - 20ºC
      • Position *: - Frost Protection














                                                                   Corner TRV with Lockshield

      • Finish - Anthracite                                      Product Code TRV4PACKCAN
      • Max. Working pressure: - 10 bar
      • Max. Flow temperature: - 110ºC
      • Max. Pressure drop: - 46 Ft. W.G.
      • Max Differential pressure: - 1.0 bar
      • Temperature Range: - 7ºC to 28ºC

      • Position 3: - 20ºC
      • Position *: - Frost Protection








       40   www.tfc-group.co.uk     01732 351680
