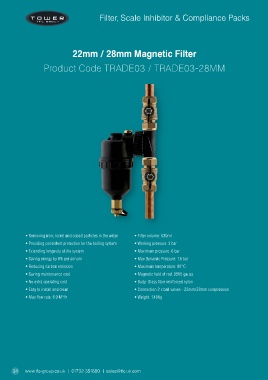

Page 36 - TFC 2022 Catalogue

Filter, Scale Inhibitor & Compliance Packs

22mm / 28mm Magnetic Filter

Product Code TRADE03 / TRADE03-28MM

• Removing iron, nickel and cobalt particles in the water • Filter volume: 530ml
• Providing consistent protection for the boiling system • Working pressure: 3 bar
• Extending longevity of the system • Maximum pressure: 6 bar
• Saving energy by 6% per annum • Max Dynamic Pressure: 1.5 bar
• Reducing carbon emission • Maximum temperature: 90°C
• Saving maintenance cost • Magnetic field of rod: 9500 gauss
• No extra operating cost • Body: Glass fibre reinforced nylon

• Easy to install and clean • Connection 2 x ball valves - 22mm/28mm compression
• Max flow rate: 6.9 M³/h • Weight: 1.48Kg
