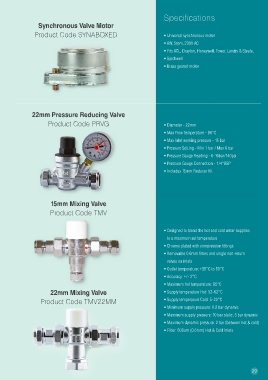

Page 31 - TFC 2022 Catalogue

Specifications
Synchronous Valve Motor

Product Code SYNABOXED • Universal synchronous motor
• 6W, 5rpm, 230V AC

• Fits ACL, Drayton, Honeywell, Tower, Landis & Steafa,
• Satchwell
• Brass geared motor

22mm Pressure Reducing Valve
Product Code PRVG • Diameter - 22mm

• Max Flow Temperature - 80°C
• Max Inlet working pressure - 16 bar
• Pressure Setting - Min 1 bar / Max 6 bar
• Pressure Gauge Reading - 0-10bar/140psi

• Pressure Gauge Connection - 1/4"BSP
• Includes 15mm Reducer Kit

15mm Mixing Valve
Product Code TMV

• Designed to blend the hot and cold water supplies
to a maximum set temperature

• Chrome plated with compression fittings
• Removable 0.6mm filters and single non-return
valves on inlets
• Outlet temperature: +35°C to 50°C
• Accuracy: +/- 2°C
• Maximum hot temperature: 85°C
22mm Mixing Valve • Supply temperature Hot: 52-62°C

Product Code TMV22MM • Supply temperature Cold: 5-20°C
• Minimum supply pressure: 0.2 bar dynamic

• Maximum supply pressure: 10 bar static, 5 bar dynamic
• Maximum dynamic pressure: 2 bar (between hot & cold)
• Filter: 600um (0.6mm) Hot & Cold inlets

29
