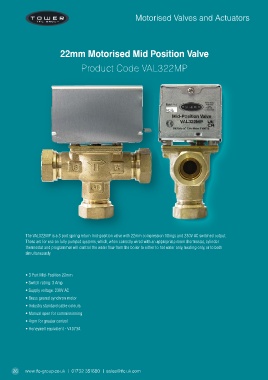

Page 28 - TFC 2022 Catalogue

Motorised Valves and Actuators

22mm Motorised Mid Position Valve

Product Code VAL322MP

The VAL322MP is a 3 port spring return mid-position valve with 22mm compression fittings and 230V AC switched output.
These are for use on fully pumped systems, which, when correctly wired with an appropriate room thermostat, cylinder
thermostat and programmer will control the water flow from the boiler to either to hot water only, heating only, or to both
simultaneously.

• 3 Port Mid-Position 22mm
• Switch rating: 3 Amp
• Supply voltage: 230V AC
• Brass geared synchron motor
• Industry standard cable colours
• Manual open for commissioning
• 4rpm for greater control
• Honeywell equivalent - V4073A
