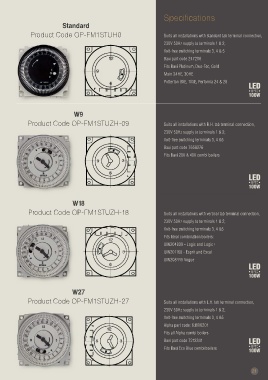

Page 23 - TFC 2022 Catalogue

Specifications
Standard

Product Code OP-FM1STUH0 Suits all installations with standard tab terminal connection,
230V 50Hz supply to terminals 1 & 2,

Volt-free switching terminals 3, 4 & 5
12 Baxi part code 247206
Fits Baxi Platinum, Duo-Tec, Gold
9
Main 24HE, 30HE
Potterton 80E, 105E, Performa 24 & 28
6

W9
Product Code OP-FM1STUZH-09 Suits all installations with R.H. tab terminal connection,

230V 50Hz supply to terminals 1 & 2,
Volt-free switching terminals 3, 4 &5
Baxi part code 7658276
Fits Baxi 200 & 400 combi boilers
9 3

6

W18

Product Code OP-FM1STUZH-18 Suits all installations with vertical tab terminal connection,

230V 50Hz supply to terminals 1 & 2,
Volt-free switching terminals 3, 4 &5
Fits Ideal combination boilers:
12
UIN204839 - Logic and Logic+
3 UIN201168 - Esprit and Excel
UIN208445 Vogue
6

W27
Product Code OP-FM1STUZH-27 Suits all installations with L.H. tab terminal connection,

230V 50Hz supply to terminals 1 & 2,
Volt-free switching terminals 3, 4 &5

Alpha part code: 6.1000201
12
Fits all Alpha combi boilers
9 3 Baxi part code 7212341
Fits Baxi Eco Blue combi boilers

21
