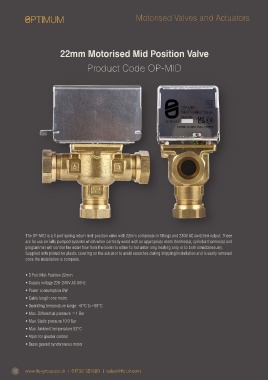

PTIMUM Motorised Valves and Actuators
22mm Motorised Mid Position Valve
Product Code OP-MID
The OP-MID is a 3 port spring return mid-position valve with 22mm compression fittings and 230V AC switched output. These
are for use on fully pumped systems which when correctly wired with an appropriate room thermostat, cylinder thermostat and
programmer will control the water flow from the boiler to either to hot water only, heating only, or to both simultaneously.
Supplied with protective plastic covering on the actuator to avoid scratches during shipping/installation and is easily removed
once the installation is complete.
• 3 Port Mid-Position 22mm
• Supply voltage 220-240V AC 50Hz
• Power consumption 6W
• Cable length one metre
• Operating temperature range: +5°C to +88°C
• Max. Differential pressure = 1 Bar
• Max. Static pressure 10.0 Bar
• Max. Ambient temperature 52°C
• 4rpm for greater control
• Brass geared synchronous motor
