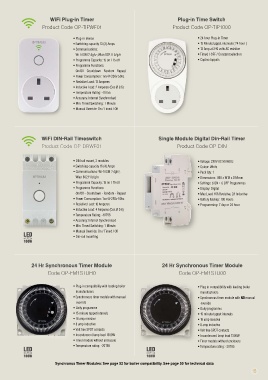

P. 17
WiFi Plug-in Timer Plug-in Time Switch
Product Code OP-TIPWF01 Product Code OP-TIP1000
• Plug-in device • 24 hour Plug-in Timer
• Switching capacity 13 (2) Amps • 15 Minute tappet intervals ( 24 hour )
• Communications: • 13 Amp at 240 volts AC resistive
Wi-fi ISM 2.4ghz; Wlan 802.11 b/g/n • Timed / OFF / Constant selection
• Programme Capacity: 15 on / 15 off • Captive tappets
• Programme Functions:
On/Off - Countdown - Random - Repeat
• Power Consumption: 1va @ 230v 50hz
• Resistive Load: 13 Amperes
• Inductive Load: 2 Amperes (Cos Ø 0.6)
• Temperature Rating: -10T55
• Accuracy: Internet Synchronised
• Min. Timed Switching: 1 Minute
• Manual Override: On / Timed / Off
WiFi DIN-Rail Timeswitch Single Module Digital Din-Rail Timer
Product Code OP-DRWF01 Product Code OP-DIN
• DIN rail mount, 2 modules • Voltage: 230V AC 50/60Hz
• Switching capacity 16 (4) Amps • Colour: White
• Communications: Wi-fi ISM 2.4ghz; • Pack Qty: 1
Wlan 802.11 b/g/n • Dimensions: H90 x W18 x D55mm
• Programme Capacity: 15 on / 15 off • Settings: 6 ON + 6 OFF Programmes
• Programme Functions: • Display: Digital
On/Off - Countdown - Random - Repeat • Max Load: 16A Resistive, 2A Inductive
• Power Consumption: 1va @ 230v 50hz • Battery Backup: 100 Hours
• Resistive Load: 16 Amperes • Programming: 7 day or 24 hour
• Inductive Load: 4 Amperes (Cos Ø 0.6)
• Temperature Rating: -10T55
• Accuracy: Internet Synchronised
• Min. Timed Switching: 1 Minute
• Manual Override: On / Timed / Off
• Din-rail mounting
24 Hr Synchronous Timer Module 24 Hr Synchronous Timer Module
Code OP-FM1STUH0 Code OP-FM1STU00
• Plug in compatibility with leading boiler • Plug in compatibility with leading boiler
manufacturers manufacturers
• Synchronous timer module with manual • Synchronous timer module with NO manual
override override
• Daily programme • Daily programme
• 15 minute tappet intervals • 15 minute tappet intervals
• 16 amp resistive • 16 amp resistive
• 8 amp inductive • 8 amp inductive
• Volt free SPDT contacts • Volt free SPDT contacts
• Incandescent lamp load 1300W • Incandescent lamp load 1300W
• Timer module without enclosure • Timer module without enclosure
• Temperature rating: -20T85 • Temperature rating: -20T85
Synchronus Timer Modules: See page 52 for boiler compatibility. See page 55 for technical data
