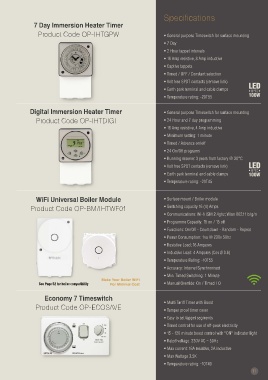

Page 13 - TFC 2022 Catalogue

Specifications
7 Day Immersion Heater Timer

Product Code OP-IHTGPW • General purpose Timeswitch for surface mounting
• 7 Day

• 2 Hour tappet intervals
• 16 Amp resistive, 8 Amp inductive
• Captive tappets
• Timed / OFF / Constant selection
• Volt free SPDT contacts (remove link)
• Earth park terminal and cable clamps
• Temperature rating: -20T55

Digital Immersion Heater Timer • General purpose Timeswitch for surface mounting
Product Code OP-IHTDIGI • 24 Hour and 7 day programming

• 16 Amp resistive, 4 Amp inductive
• Minimum setting: 1 minute
• Timed / Advance on/off
• 24 On/Off programs
• Running reserve: 3 years from factory @ 20°C
• Volt free SPDT contacts (remove link)

• Earth park terminal and cable clamps
• Temperature rating: -20T45

WiFi Universal Boiler Module • Surface mount / Boiler module

Product Code OP-BM/IHTWF01 • Switching capacity 16 (4) Amps
• Communications: Wi-fi ISM 2.4ghz; Wlan 802.11 b/g/n
• Programme Capacity: 15 on / 15 off
• Functions: On/Off - Countdown - Random - Repeat
• Power Consumption: 1va @ 230v 50hz
• Resistive Load: 16 Amperes
• Inductive Load: 4 Amperes (Cos Ø 0.6)

• Temperature Rating: -10T55
• Accuracy: Internet Synchronised
• Min. Timed Switching: 1 Minute
Make Your�Boiler WiFi
See Page 52 for boiler compatibility For Minimal Cost • Manual Override: On / Timed / O

Economy 7 Timeswitch
• Multi Tariff Timer with Boost
Product Code OP-ECOSAVE • Tamper proof timer cover

• Easy to set tappet segments

• Timed control for use of off-peak electricity
• 15 - 120 minute boost control with "ON" indicator light
• Rated voltage: 230V AC ~ 50Hz
• Max current: 16A resistive, 2A inductive
• Max Wattage 3.5K
• Temperature rating: -10T40
11
