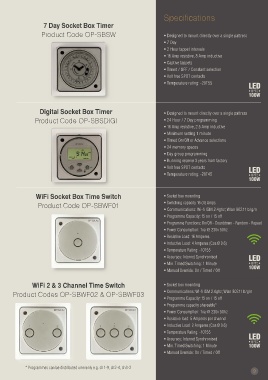

Page 11 - TFC 2022 Catalogue

Specifications
7 Day Socket Box Timer

Product Code OP-SBSW • Designed to mount directly over a single pattress
• 7 Day
• 2 Hour tappet intervals
• 16 Amp resistive, 8 Amp inductive
• Captive tappets
• Timed / OFF / Constant selection
• Volt free SPDT contacts
• Temperature rating: -20T55

Digital Socket Box Timer • Designed to mount directly over a single pattress
Product Code OP-SBSDIGI • 24 Hour / 7 Day programming
• 16 Amp resistive, 2.5 Amp inductive
• Minimum setting 1 minute
• Timed On/Off or Advance selections
• 24 memory spaces
• Day group programming
• Running reserve 3 years from factory
• Volt free SPDT contacts
• Temperature rating: -20T45

WiFi Socket Box Time Switch • Socket box mounting
Product Code OP-SBWF01 • Switching capacity 16 (4) Amps
• Communications: Wi-fi ISM 2.4ghz; Wlan 802.11 b/g/n
• Programme Capacity: 15 on / 15 off
• Programme Functions: On/Off - Countdown - Random - Repeat
• Power Consumption: 1va @ 230v 50hz
• Resistive Load: 16 Amperes
• Inductive Load: 4 Amperes (Cos Ø 0.6)
• Temperature Rating: -10T55
• Accuracy: Internet Synchronised
• Min. Timed Switching: 1 Minute
• Manual Override: On / Timed / Off

WiFi 2 & 3 Channel Time Switch • Socket box mounting

Product Codes OP-SBWF02 & OP-SBWF03 • Communications: Wi-fi ISM 2.4ghz; Wlan 802.11 b/g/n
• Programme Capacity: 15 on / 15 off
• Programme capacity shareable*
• Power Consumption: 1va @ 230v 50hz
• Resistive load: 5 Amperes per channel
• Inductive Load: 2 Amperes (Cos Ø 0.6)
• Temperature Rating: -10T55
• Accuracy: Internet Synchronised
• Min. Timed Switching: 1 Minute
• Manual Override: On / Timed / Off

* Programmes can be distributed unevenly e.g. ch1-9, ch2-4, ch3-2
